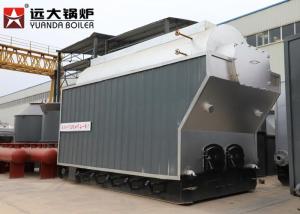

Chain Grate Coal Fired Steam Boiler 2Ton For Animal Food Processing
1. Application
The main purpose of DZH series manual coal fired steam boiler is to provide best quality of steam and power for industrial production. Widely used for chemical, pharmacy, packaging, paper, building materials, painting, textile, garment, printing and dyeing, food, beverage and wine industries, and places such as super market, hospital, university, hotel, restaurant and swimming pool etc.
2. Product Description
DZH series manual coal fired steam boiler, lower price cost than other boiler model, adopt three pass fire tube boiler, manual feeding fuel design, there are hole to devote coal/biomass fuel.
1. Use movable fire grate, equip with blower, draft fan, economizer, deduster, automatic water treatment, water pump, steam header, control cabinet, valves and meters etc auxiliary machines.
2. Due to the less of auxiliaries of this series boiler, so low fault of machines, reduce maintenance cost, easy operation, save time and materials, is an economical boiler type.
3. Product advantages
The output power remain constant,High quality of steam
The boiler is heating up quickly and have high heat efficiency
Low original dust concentration,environmental protection and energy conservation
Small size appearance, low investment in boiler room
Low running cost, safe and reliable (safety and reliability)
Short installation time, low installation cost
4. Product Parameter Table
| Boiler Model |
Capacity |
Pressure |
Feed water temp. |
Steam temp. |
Active grate area |
Design efficiency |
Fuel consump |
Main part weight |
Delivery Mode |
| t/h |
MPa |
℃ |
℃ |
㎡ |
% |
Kg/h |
Ton |
| DZL1-1.0-AII |
1 |
1 |
20 |
184 |
1.85 |
80 |
118 |
14.2 |
Package |
| DZL2-1.25-AII |
2 |
1.25 |
20 |
194 |
3.4 |
80 |
238 |
23.2 |
Package |
| DZL4-1.25-AII |
4 |
1.25 |
60 |
194 |
5.18 |
80 |
472 |
28 |
Package |
| DZL6-1.25-AII |
6 |
1.25 |
60 |
194 |
7.55 |
80 |
685 |
47.6 |
Package |
| DZL10-1.25-AII |
10 |
1.25 |
105 |
194 |
12 |
80 |
1128 |
56 |
Assembled |
| DZL15-1.25-AII |
15 |
1.25 |
105 |
194 |
18 |
81 |
1698 |
18.8 |
Assembled |
| DZL20-1.25-AII |
20 |
1.25 |
105 |
194 |
22.9 |
81 |
2241 |
19.1 |
Assembled and Semi-Assembled |
This is just part of the product parameters, if you want to know more detailed parameters of the boiler, please feel free to contact us. shirley@yuanda-boiler.com
